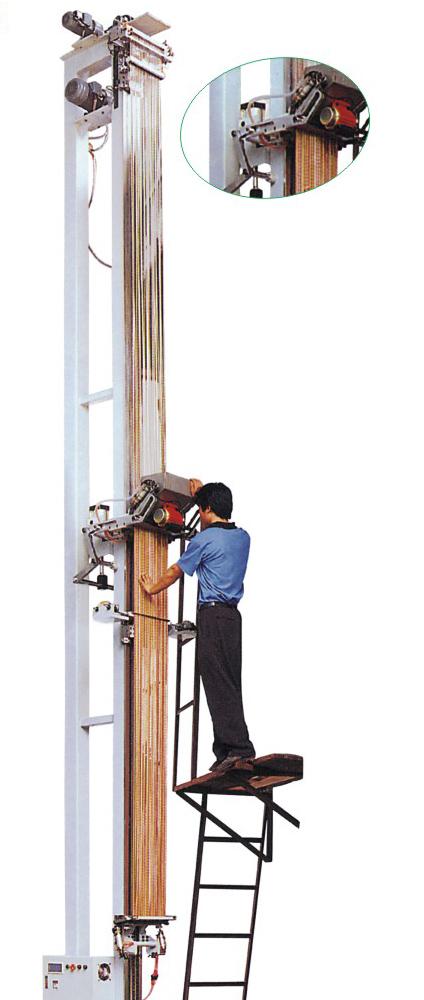

3-meter powder-filling machine

Product Info:

LFS22-30 type three meters powder filling machine, Division I according to market needs, combined LFS22 series of advantages, originality developed a double-column structure, with the industry to fill the gaps. Main features 1 twin column frame structure, machine rigidity 2, electromagnetic frequency, PSA, amplitude, follow oscillation 3, the mandrel, the catheter inverter 4, a single conduit structure, high utilization of magnesium Main parameter power: single phase 220V, 50Hz, 2Kw gas source: 0.5-0.7Mpa electric control: master PLC, operate the touch screen (HMI) fitted tube diameter: φ8-φ12mm (customizable) tubing length: 800 - 3000mm yield: 1000 / 8H (tube length 2500mm, diameter φ9.5mm example) dimension: 1000 (L) x 1000 (W) x 7800 (H) mm weight: 1000KGS
