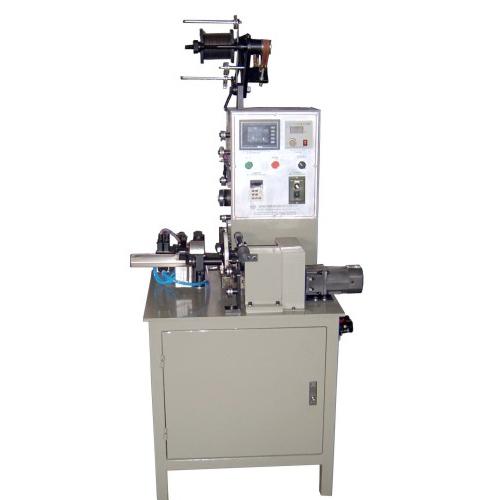

LFS23-RX03 Precision winding machine, mainly used for the electric industry hot wire around the system, it has a small size, spindle speed adjustable, smooth, continuous, high production efficiency. After the machine uses PLC, touch screen, high speed encoder is used as the control element, can accurately control the winding resistance, as long as the touch screen can be automatically set as desired winding resistance and the required parameters, the preset resistance around automatically cut off and automatically cleared, repeat continuously, the machine can be adapted to different diameters required, high production efficiency. Less lines, broken and reaches the preset automatic shut-down production. The main parameters: Power: Single phase 220V, 50Hz, 0.6Kw gas source: 0.5-0.7Mpa diameter: φ0.12 -φ0.8mm (customizable) winding inner diameter: φ1 .5-φ6.0mm (customizable) spindle motor: 370W (speed adjustable) rubber tire motor: 60W (adjustable speed with gear box) dimensions: 1280 (L) x 1380 (W) x 1930 (H) mm weight: 180KGS
