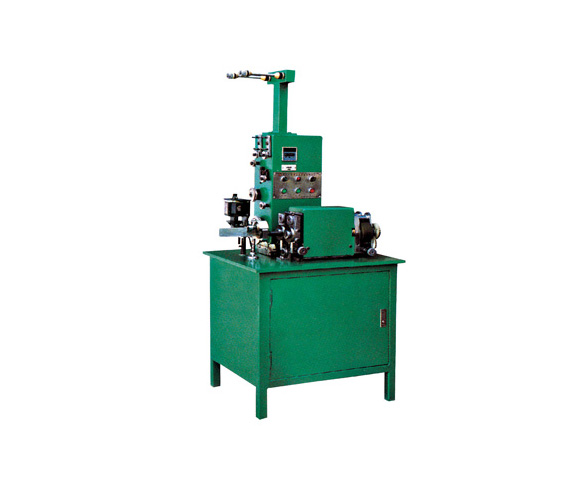

LFS23-B-E-type double by round winding machine, the machine has a small size, the spindle is adjustable, smooth, continuous, high production efficiency. Thanks to double by the wheel structure, more appropriate small-coil and dual filament wound. It has now been used by a number of electric heating pipe manufacturers. After the machine uses JDM15 electronic counter as a post-control element, can accurately control the number of coil, as long as the counter is preset as required to set the desired number can be automatically wound coils wound around to the preset number of turns automatically cut off and automatically cleared, repeat continuously, the machine can be adapted to different diameters required, high production efficiency. Less lines, broken automatic shutdown, cumulative production and so on. The main parameters: Power: Single phase 220V, 50Hz, 0.6Kw gas source: 0.5-0.7Mpa winding diameter: depending on the winding mandrel according to the inner diameter: φ1 -φ6mm (customizable) spindle motor: 370W (adjustable speed) gum wheel motor: 60W (adjustable speed with gear box) dimensions: 600 (L) x 700 (W) x 1630 (H) mm weight: 175KGS
